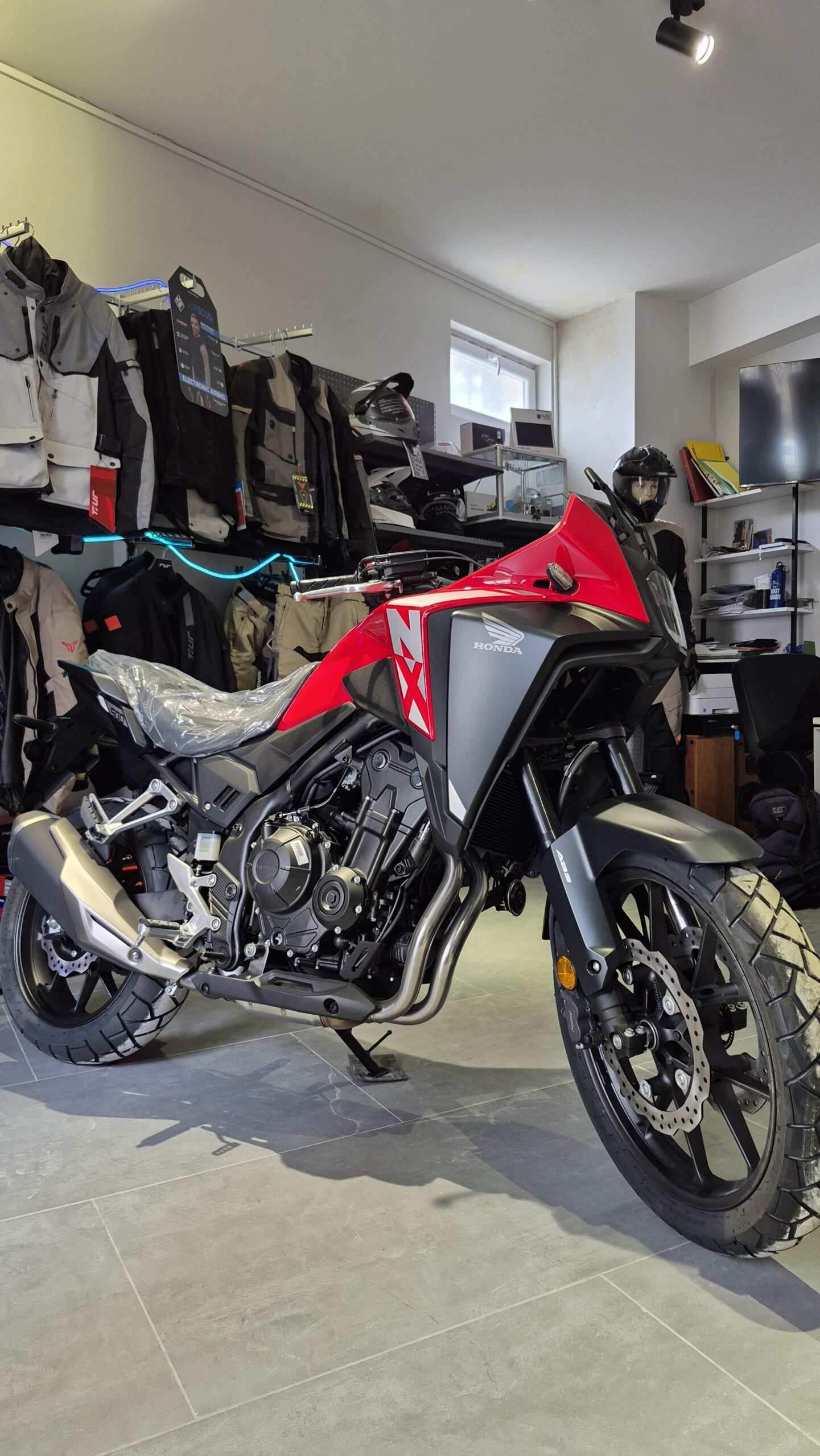

NX500

Description

Dimensions & Weight

• Overall Length: 216.5 cm (2165 mm)
• Overall Width: 83 cm (830 mm)
• Overall Height: 141.5 cm (1415 mm)
• Wheelbase: 144.5 cm (1445 mm)
• Seat Height: 83 cm (830 mm)
• Ground Clearance: 18 cm (180 mm)
• Kerb Weight: 196 kg
• Fuel Tank Capacity: 17.5 Litres

Engine

• Engine Type: Liquid-cooled 4-stroke DOHC parallel twin
• Displacement: 471 cc
• Bore × Stroke: 6.7 cm × 6.68 cm (67 mm x 66.8 mm)
• Maximum Power: 35 kW (47 hp) @ 8,500 rpm
• Maximum Torque: 43 Nm @ 6,500 rpm
• Fuel Consumption: 3.6 L/100km (27.8 km/L)

Suspension & Brakes

• Front Suspension: Showa 4.1 cm (41 mm) SFF-BP USD forks
• Rear Suspension: Prolink mono, 5-stage preload adjuster
• Front Brake: Dual 29.6 cm (296 mm) discs, 2-piston calipers
• Rear Brake: Single 24 cm (240 mm) disc, 1-piston caliper
• Front Wheel Travel: 13.5 cm (135 mm)
• Rear Wheel Travel: 13.5 cm (135 mm)

Wheels & Tires

• Front Tyre: 110/80R19M/C (59H)
• Rear Tyre: 160/60R17M/C (69H)
• Front Wheel: 48.2 cm (19-inch) Cast Aluminium
• Rear Wheel: 43.1 cm (17-inch) Cast Aluminium

Other Features

• TC Traction Control: On / Off
• TFT Display Size: 12.7 cm (5 inches)
• Turning Radius: 2.4 m
