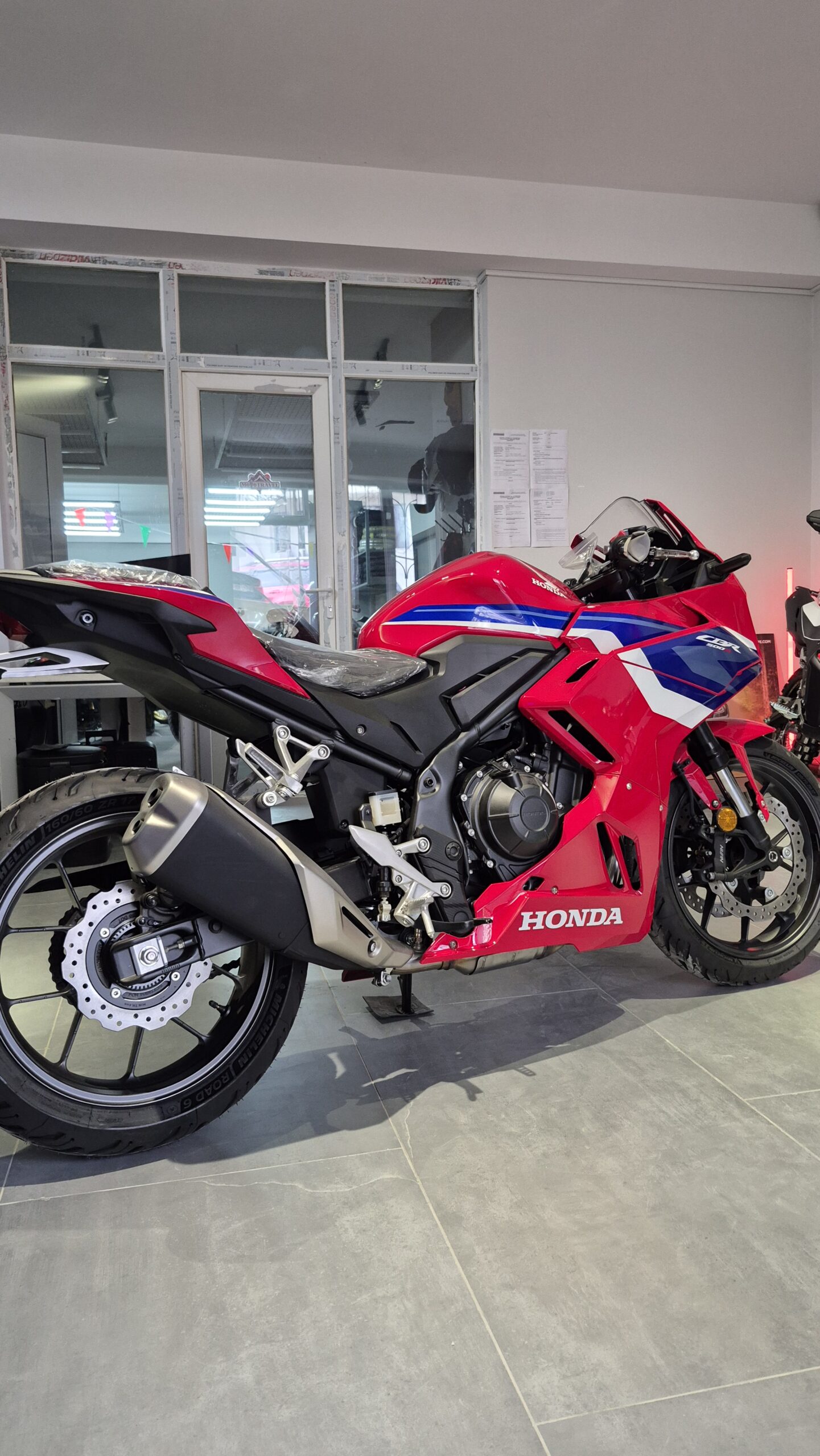

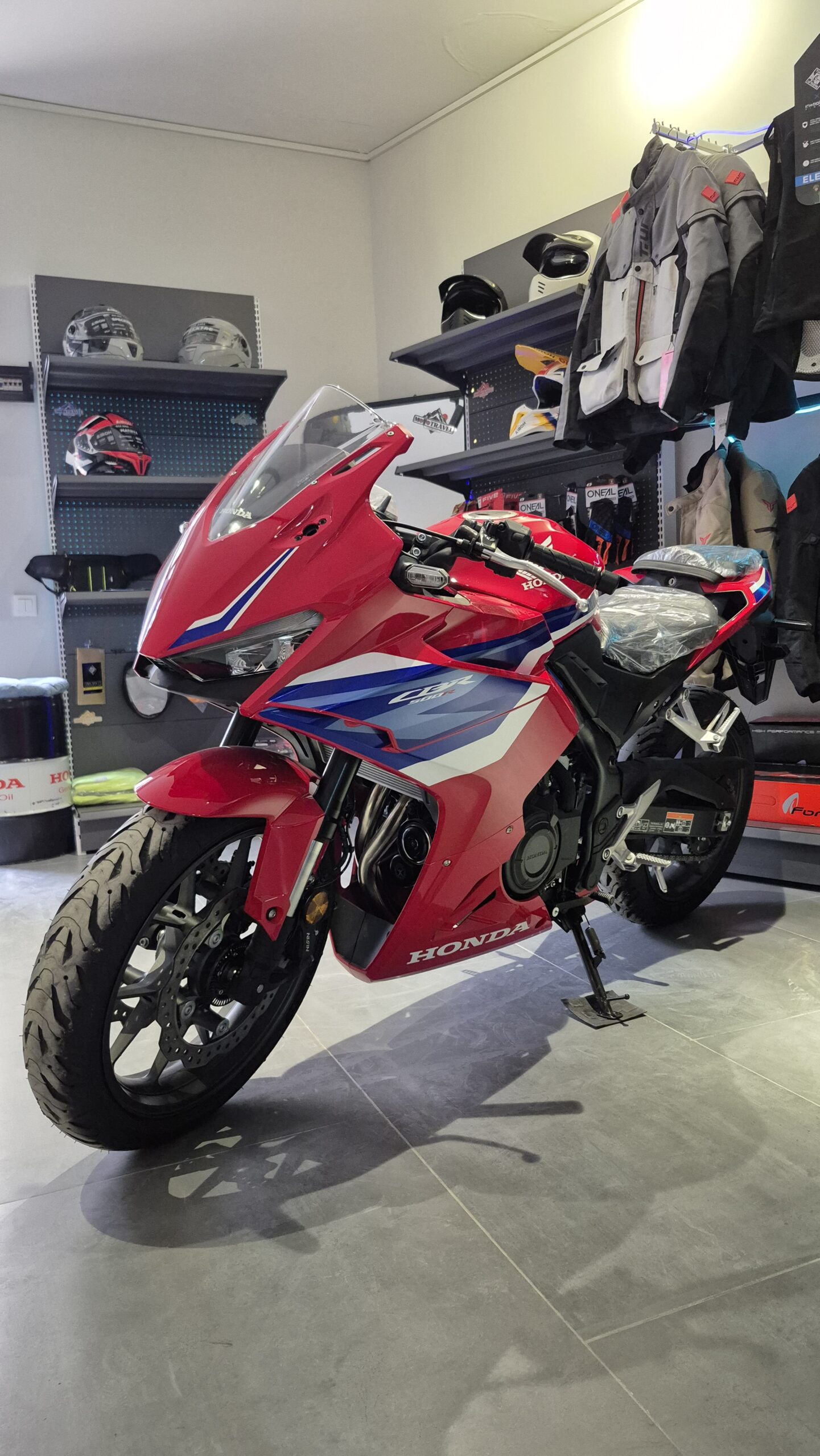

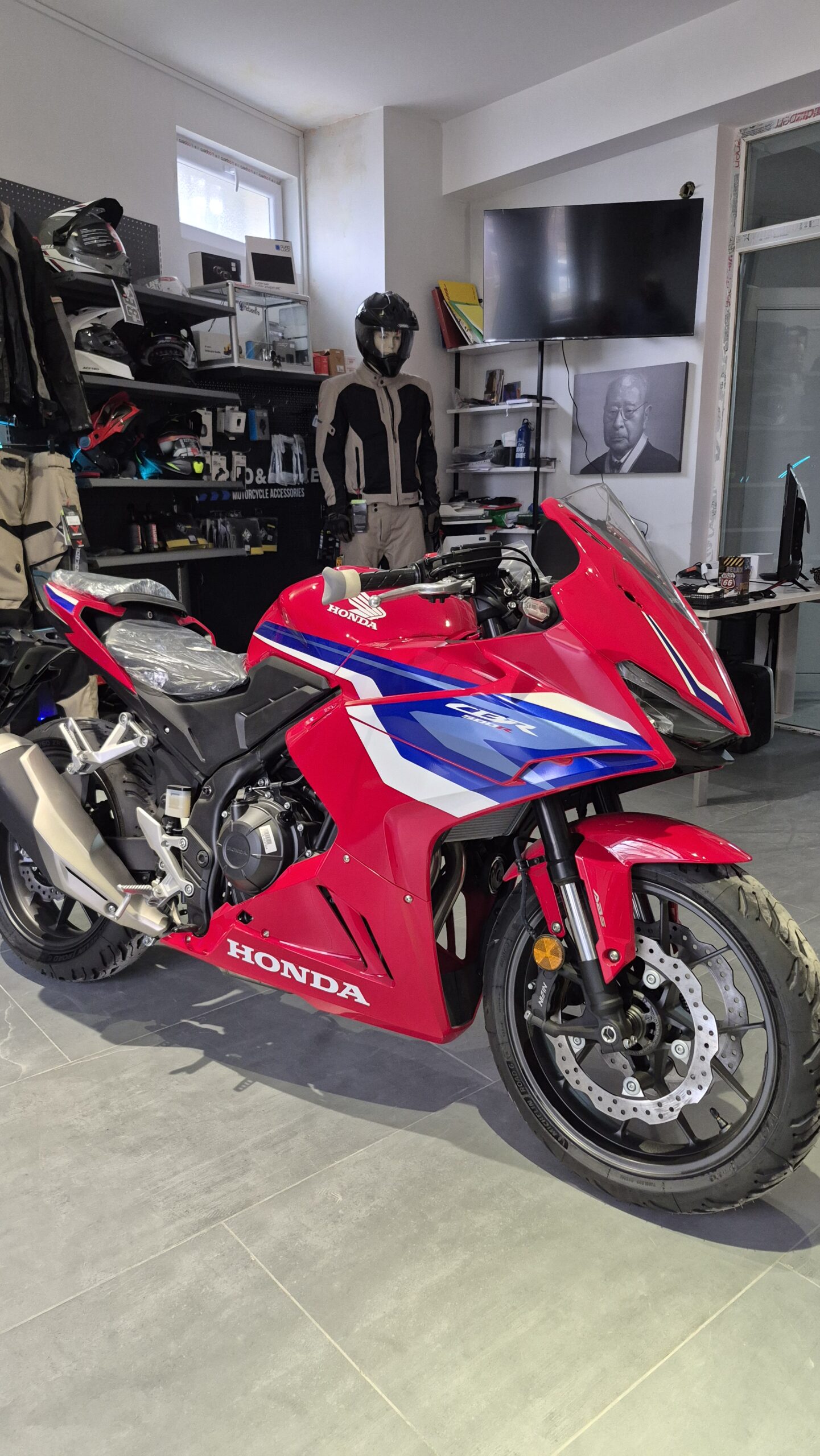

CBR500R

Description

Key Specifications

• Engine Type: Liquid-cooled 4-stroke DOHC parallel twin
• Displacement: 471 cc
• Bore × Stroke: 67.0 mm x 66.8 mm
• Max Power Output: 35 kW (approx. 47 hp) @ 8,500–8,600 rpm
• Max Torque: 43 Nm @ 6,500 rpm
• Fuel Consumption: 3.5 L/100 km (approx. 28.6 km/L)
• Kerb Weight: 191 kg - 194 kg (depending on year/model)
• Fuel Tank Capacity: 17.1 Litres

Dimensions and Measurements

• Length: 208 cm (2,080 mm)
• Width: 75.5 cm - 76 cm (755 mm - 760 mm)
• Height: 114.5 cm (1,145 mm)
• Wheelbase: 141 cm (1,410 mm)
• Seat Height: 78.5 cm (785 mm)
• Ground Clearance: 13 cm (130 mm)
• Trail: 10.2 cm (102 mm)
• Front Tire: 120/70ZR-17M/C
• Rear Tire: 160/60ZR-17M/C

Features and Underpinnings

• Suspension Front: 41mm Showa Separate Function Fork Big Piston (SFF-BP) USD forks
• Suspension Rear: Pro-Link mono with 5-stage pre-load adjuster
• Brakes Front: Dual 296mm discs with Nissin radial-mount four-piston calipers (ABS)
• Brakes Rear: Single 240mm disc with single-piston caliper (ABS)
• Instruments: 5-inch TFT screen with customizable layout and RoadSync connectivity
• Traction Control: Honda Selectable Torque Control (HSTC) standard on newer models (2024+)
• Clutch: Assist/slipper clutch
• Lighting: Full LED

2025 Upgrades

• Updated Styling: New aerodynamic fairings and LED headlights.
• Tech Enhancements: Inclusion of HSTC (Traction Control) and a 5-inch TFT display with Honda RoadSync, allowing smartphone connectivity.
• ECU Upgrades: Optimized fuel injection and ignition for improved acceleration feel.
