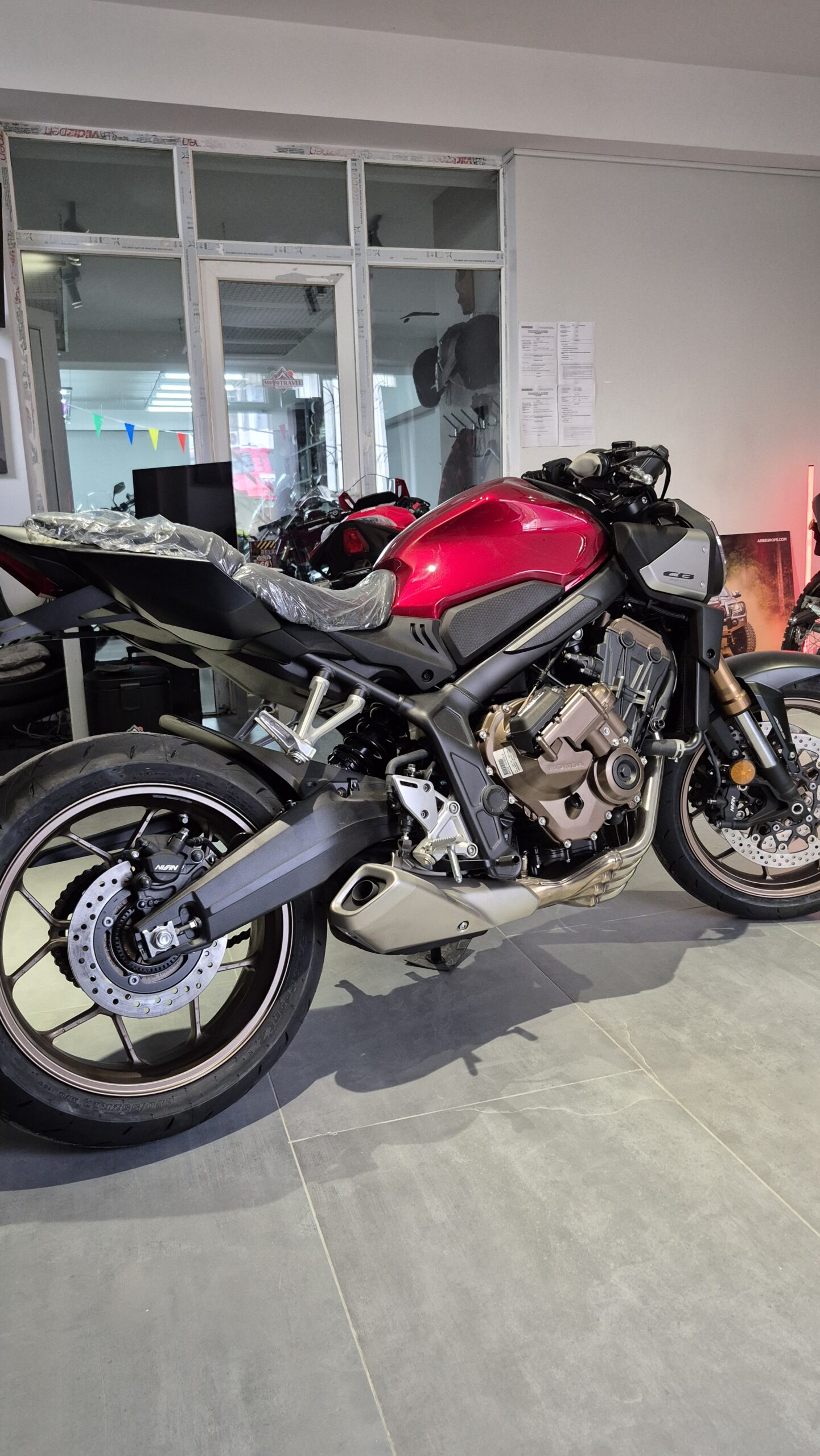

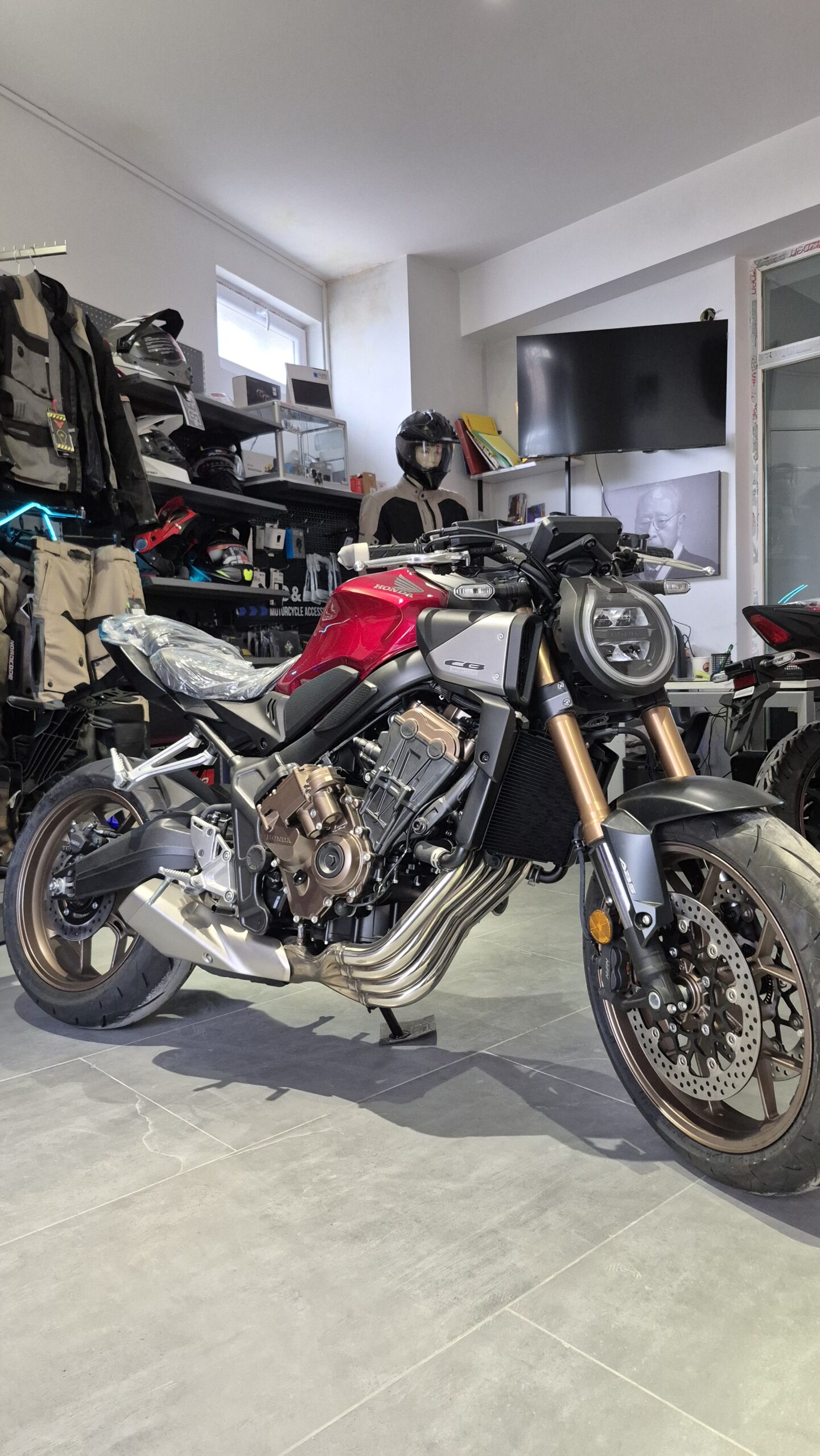

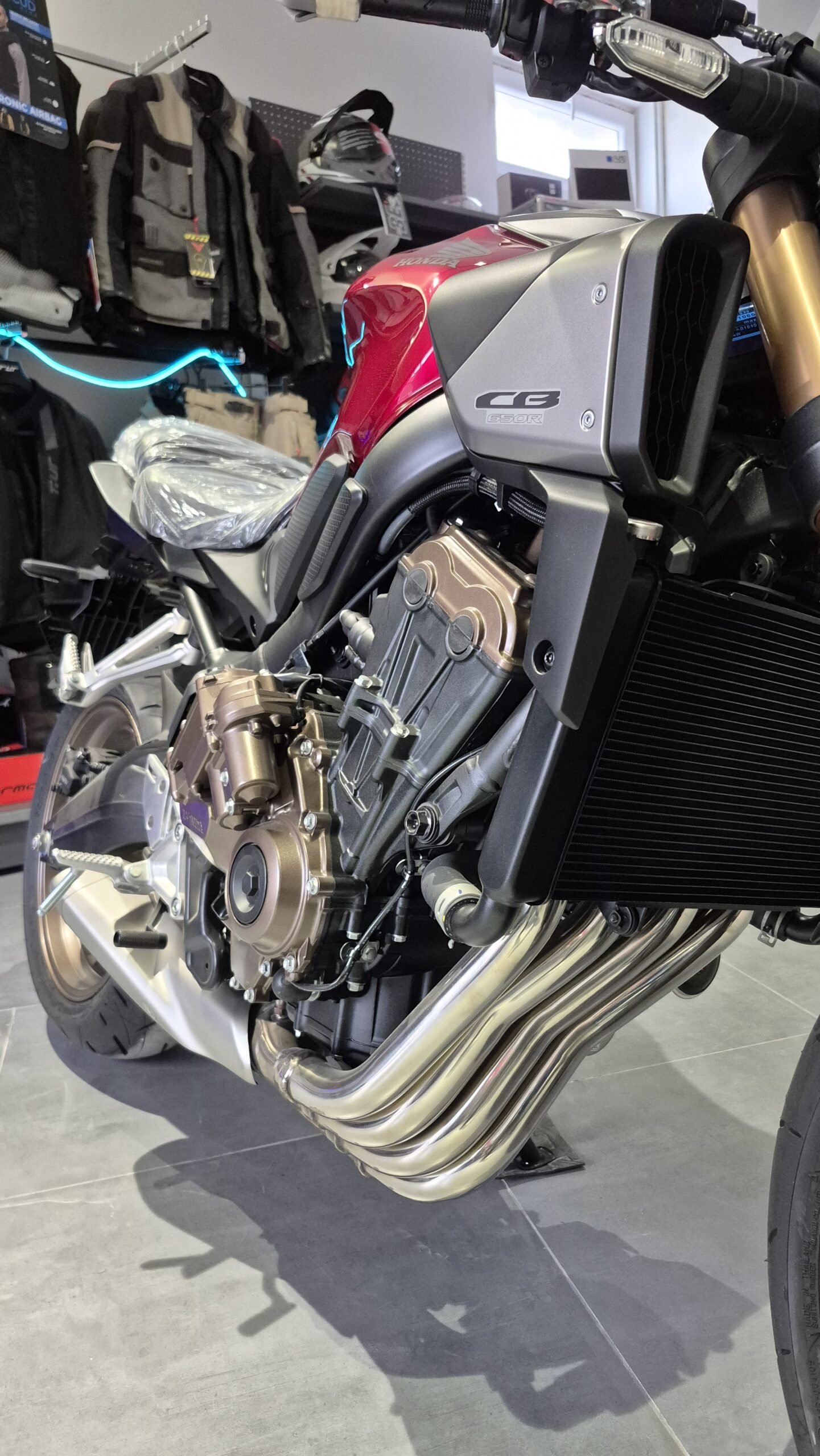

CB650R

Description

Engine and Performance

• Engine Type: Liquid-cooled 4-stroke 16-valve DOHC inline-4.
• Displacement: 649 cc.
• Bore × Stroke: 67 mm × 46 mm.
• Max Power: 70 kW (94 hp) @ 12,000 rpm.
• Max Torque: 63 Nm @ 9,500 rpm.
• Compression Ratio: 11.6:1.
• Fuel Consumption: 4.9 L/100km (approx. 20.4 km/l).
• Fuel Tank Capacity: 15.4 Litres.
• Transmission: 6-speed, with optional Honda E-Clutch or quickshifter.
• Clutch Type: Wet, multiplate disc with assist/slipper.

Dimensions and Weights

• Length × Width × Height: 2,120 mm × 780 mm × 1,075 mm (approx. 212 × 78 × 107.5 cm).
• Wheelbase: 1,450 mm (145 cm).
• Seat Height: 810 mm (81 cm).
• Ground Clearance: 150 mm (15 cm).
• Kerb Weight: 205 kg (207 kg with E-Clutch).
• Caster Angle: 25.5°.
• Trail: 101 mm (10.1 cm).

Chassis and Suspension

• Frame: Steel diamond.
• Front Suspension: 41mm Showa Separate Function Big Piston (SFF-BP) USD forks.
• Rear Suspension: Monoshock damper with 10-stage pre-load adjuster, aluminium cast swingarm.
• Front Brake: 310 mm × 4.5 mm double disc with four-piston radial-mount calipers.
• Rear Brake: 240 mm × 5 mm disc with single-piston caliper.
• ABS: Two-channel.
• Front Tyre: 120/70ZR17 M/C (58W).
• Rear Tyre: 180/55ZR17 M/C.

Key Features (2024–2026 Model)

• 5-inch TFT Screen: New full-colour screen with optical bonding for better visibility in bright light.
• Honda RoadSync: Smartphone connectivity for navigation, calls, and music.
• E-Clutch Option: Allows for starting, stopping, and shifting without using the clutch lever.
• Neo Sports Café Styling: Revised sharper tail, new radiator shrouds, and a slanted LED headlight.
• HSTC: Honda Selectable Torque Control (traction control).
• USB Type-C Socket: Located under the seat for charging devices.
